ClearCom - Encore Interface: 1Ch, 2-wire / 4-wire

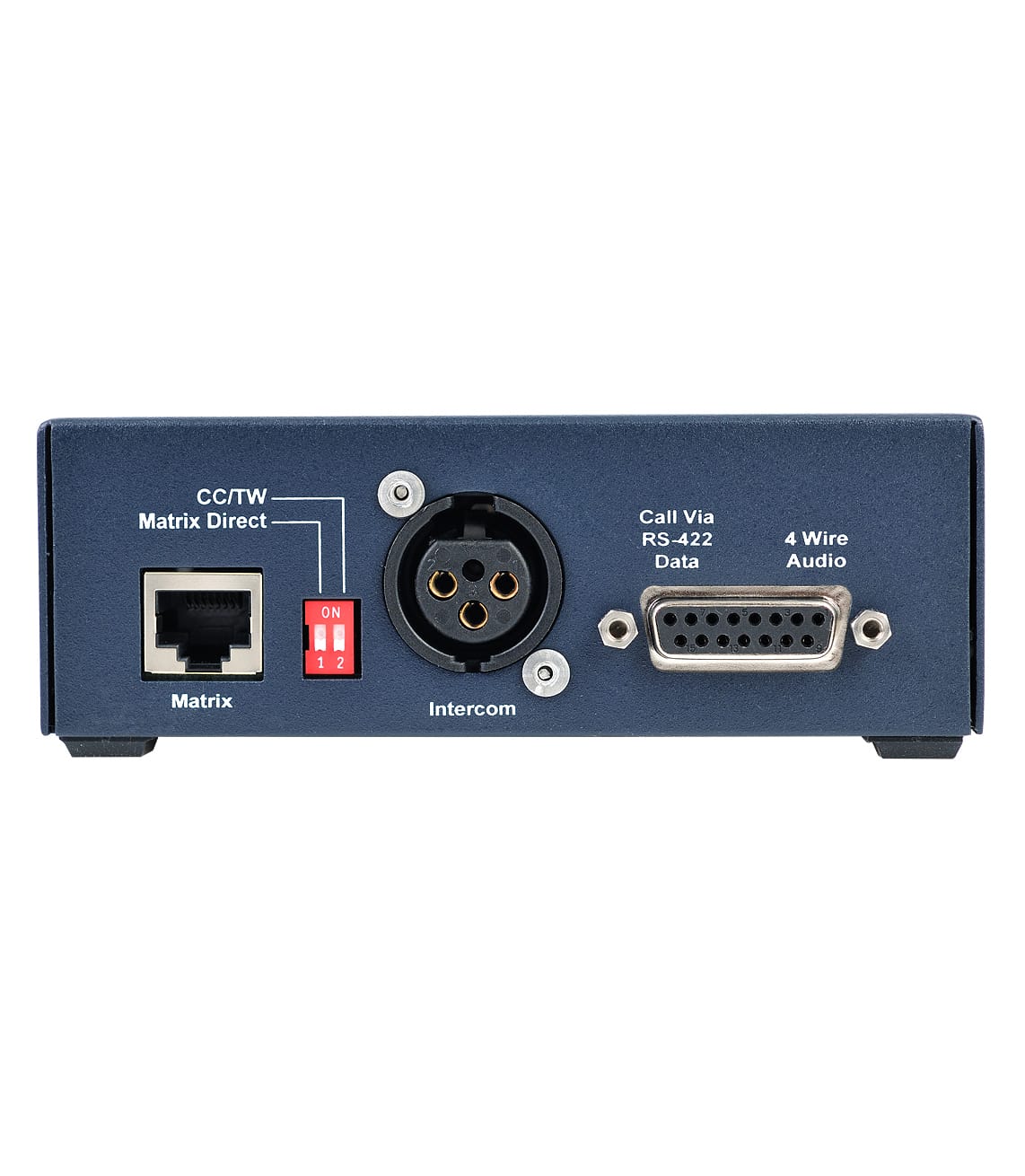

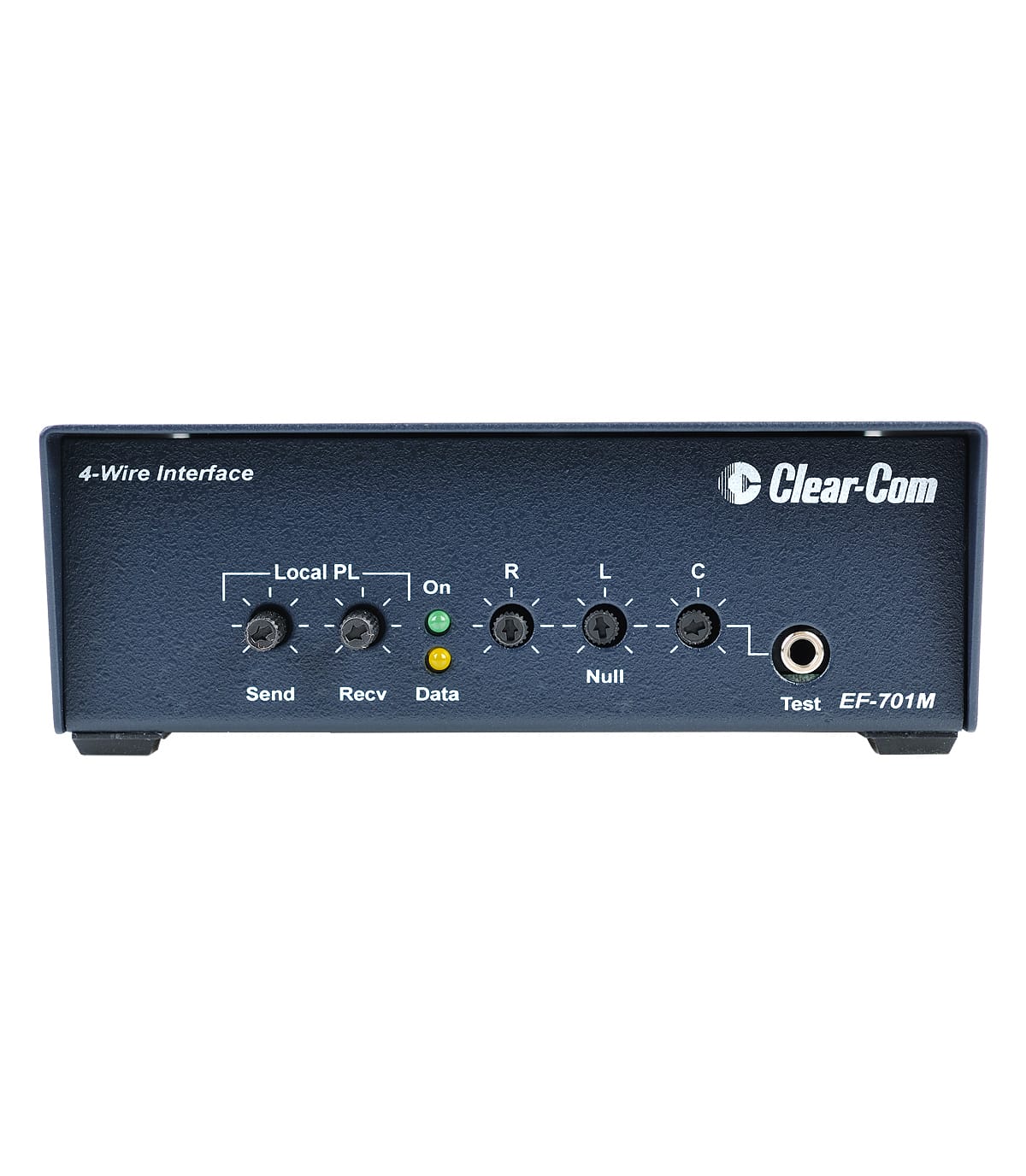

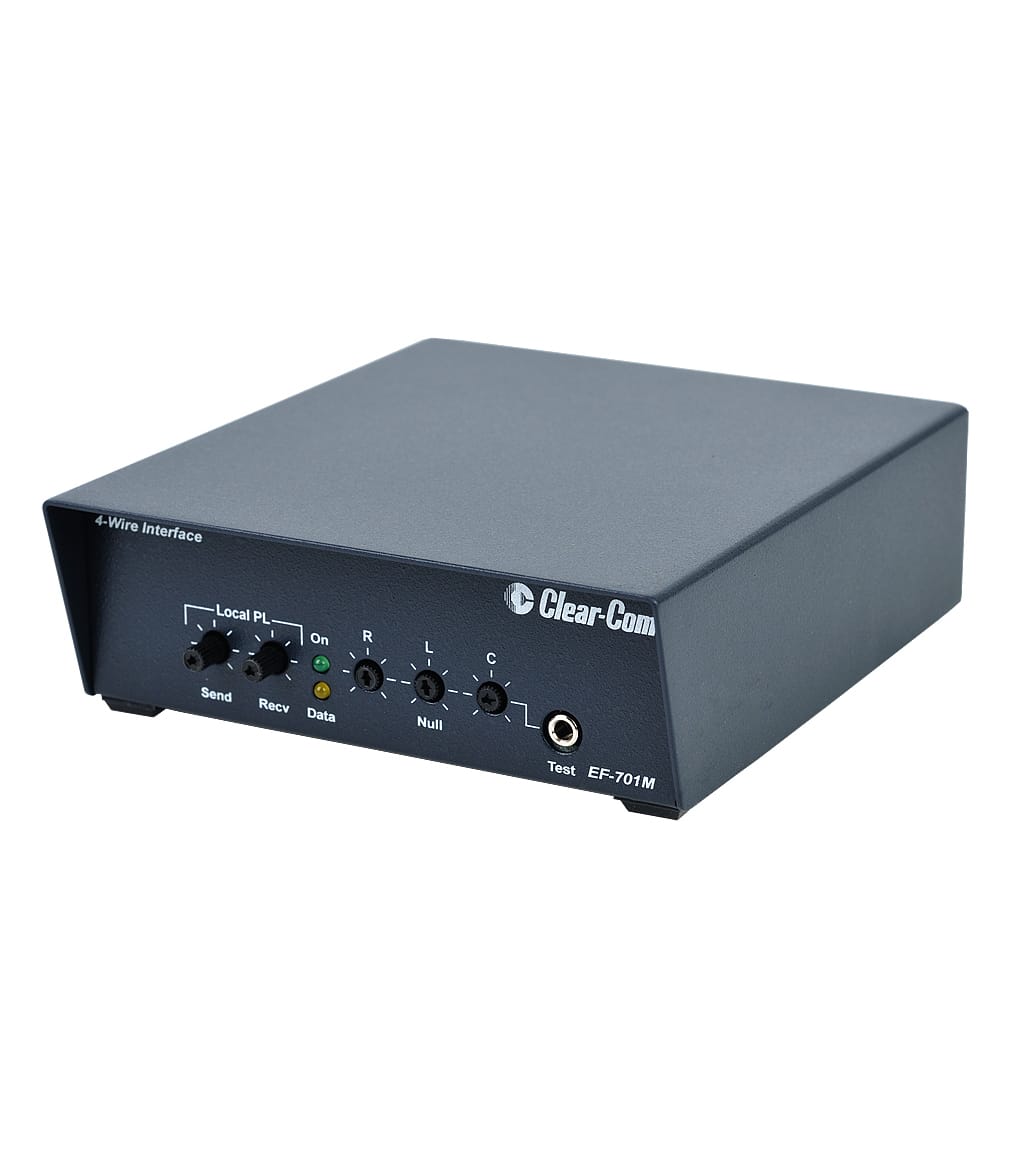

The EF-701M interface converts a single channel of standard or TW partyline intercom to four-wire audio, while also converting call signals to RS-422 data (and back). The resulting four-wire audio plus RS-422 data can then be sent to a Clear-Com Matrix port, fiber-optic converter (modem) or connected to another EF-701M over twisted-pair cable such as CAT-5E. EF701M from ClearCom is 100% original and is available at Edge Electronics. Speak to our expert for booking a live demonstration. After sales customer service is an integral part of our business ethic and is taken very seriously.

  • Order by Part Number
    • Part Number: EF-701M
  • Shipping Info

    Generally ships between 2 - 4 working days from order confirmation.

Edge Electronics - Brand ClearCom  Edge Electronics - Product
Contact Our
 Edge Electronics - user  Edge Electronics  Dubai - Product

Email: [email protected]
Whatsapp: +971 52 1421535

  • Product Specifications
    Title Value
    Send frequency 20kHz ±1KHz
    Receive frequency 20kHz ±500Hz
    Max Level Before Clipping >=20dBu
    Impedance >=10K?
    Input Voltage Range 20-30VDC
  • Tutorials & Manuals
    Description Language Download
    User Manual English
